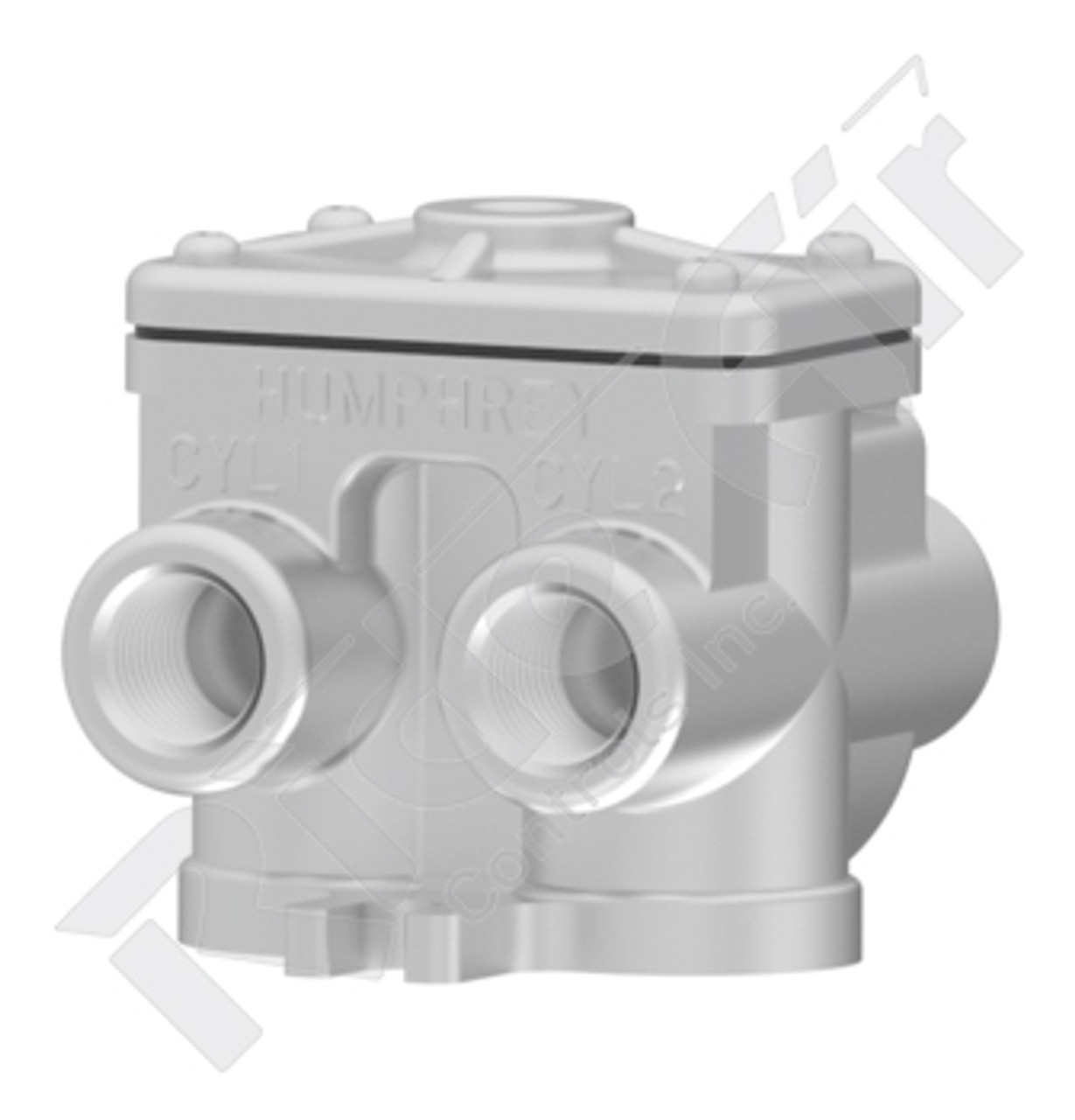

RA501-4A - 4-Way Air Piloted Valve

Product Description

The 1/2 pipe, 501-4A Series piston-poppet, 4-way air piloted valve achieves high flow from a compact body. Excellent choice to operate large double acting pneumatic cylinders (up to 8" bore) in poor media, difficult environments. Mounting feet standard.

1/2" orifice — 212 CFM at 125 psig.

4-way.

Two position — spring return.

Pressure rating — 0-125 psig

•   Normally closed/normally open.
•   With all ports on the same horizontal plane, it provides convenient straight-line plumbing.
•   Light weight aluminum construction.
•   Fast cycling — 600 CPM.
•   Mount in any position — inline or with body mounting lugs.
